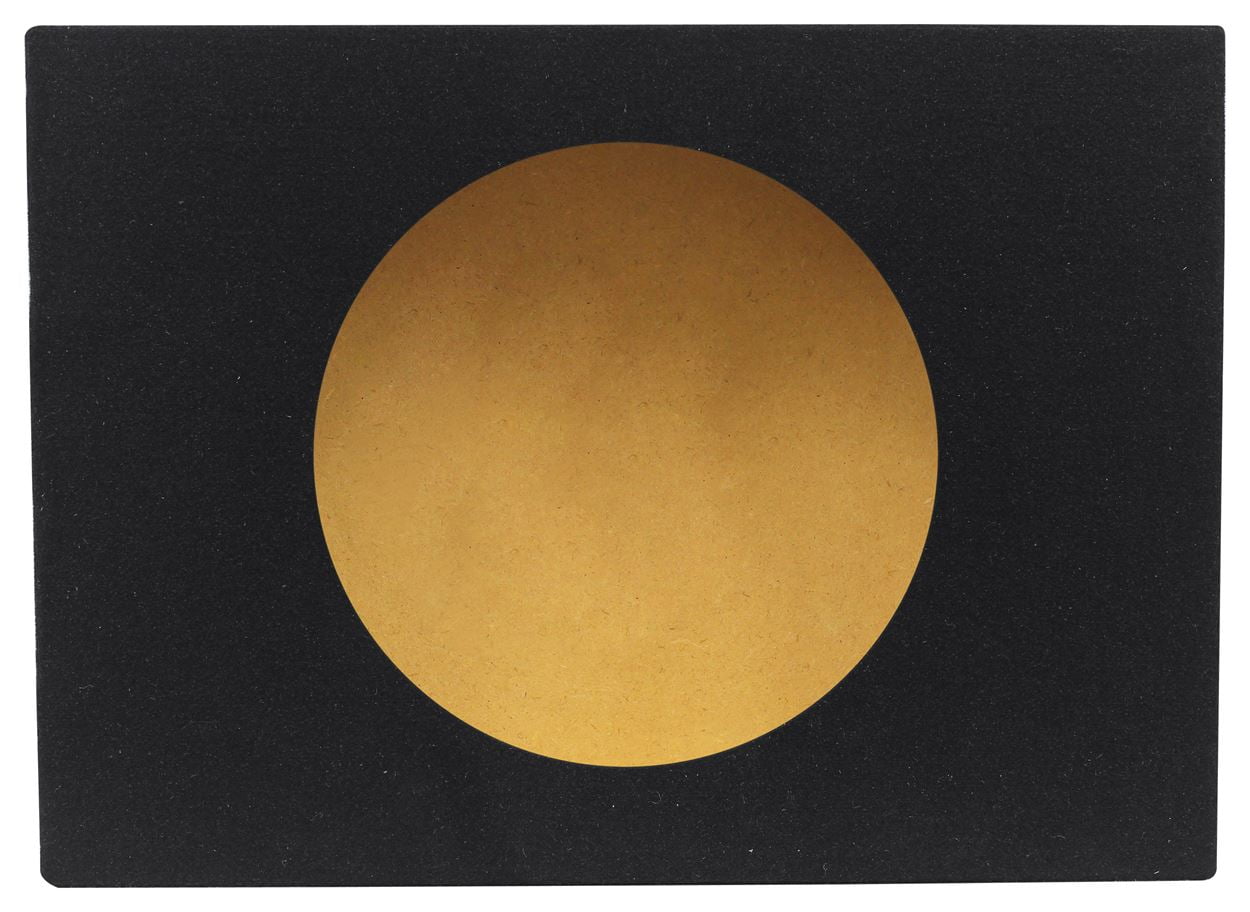

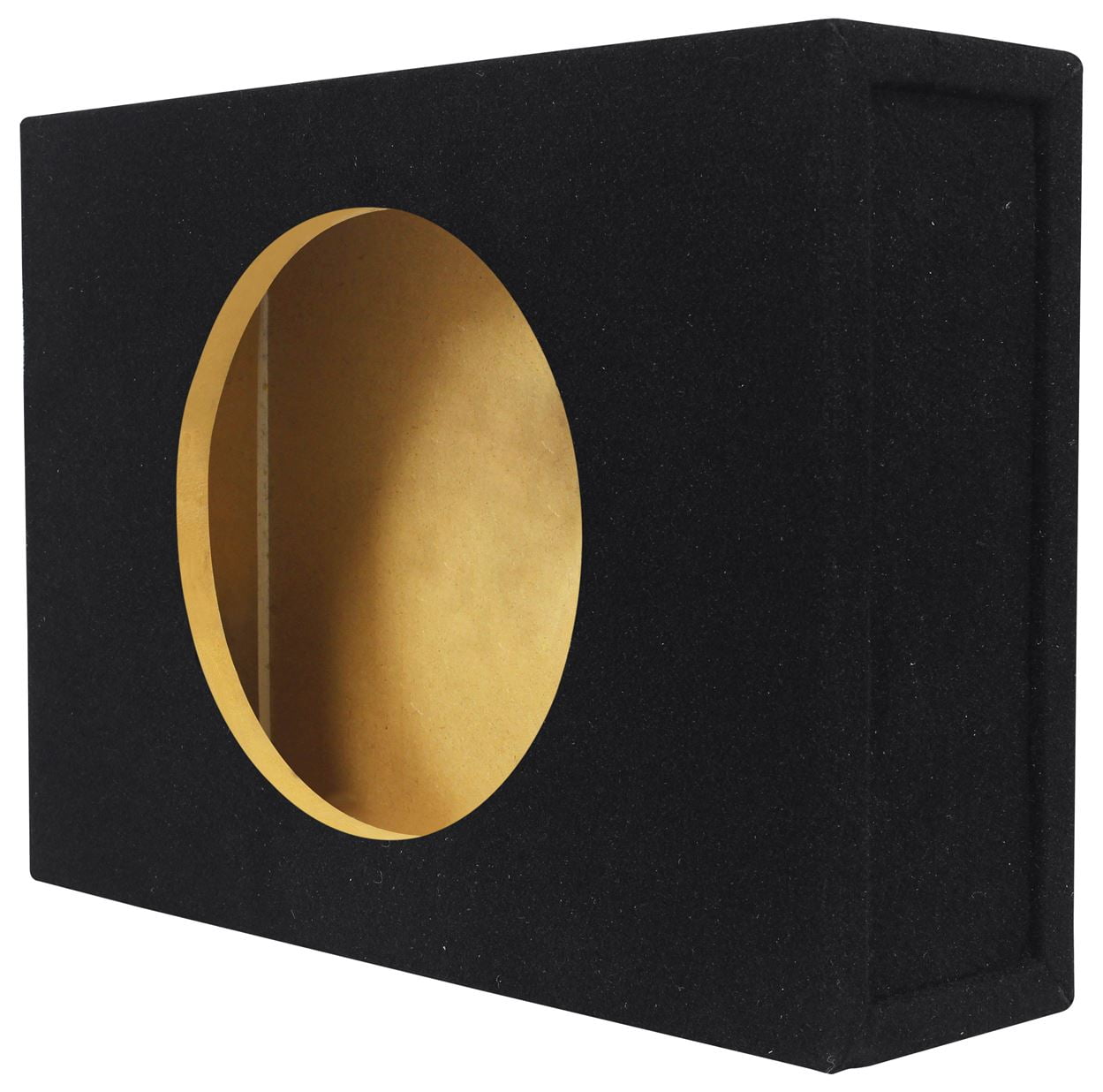

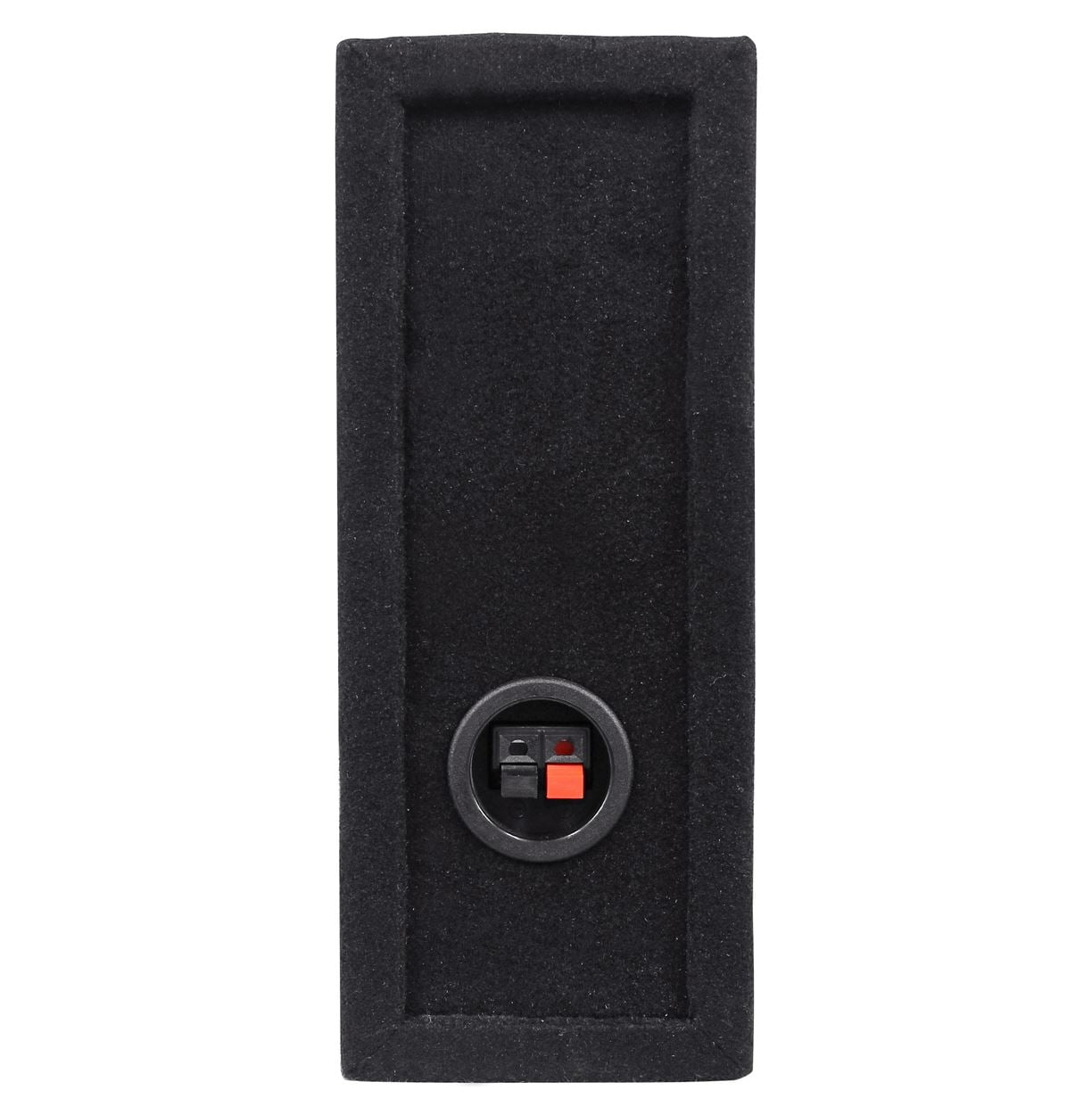

Description Package Includes: (1) Alpine RS-W10D2 10” 600 Watt RMS Shallow Car Audio Subwoofer Dual 2-ohm Slim Sub (1) Rockville RSTS10 10″ Shallow 0.62 Cu Ft Sealed Car/Truck Sub Enclosure Box (1) Complete Single Sub Box Enclosure Installation Kit: Speaker Wire, Screws, Spades Features: 10″ High-Performance Shallow Bass Driver Neodymium Magnet Alpine Gen2 DD Linear Magnetic Circuit Aluminum Dust Cap Cast Aluminum Frame Specifications: TECH SPECIFICATIONS: Mounting Depth: 3.25″ Power Range: 500W-600W RMS Power Handling: 600W RMS / 1800W Peak Frequency Response: 25Hz-100Hz Magnet Weight: 10.4 oz Voice Coil: 4″ (100mm) BOX SPECIFICATIONS: SEALED BOX RANGE: Net Internal Volume: 0.4 – 1.0 ft3 RECOMMENDED SEALED BOX (SMALL VOLUME): External Dimensions: 16″ x 15″ x 6.25″ Gross Internal Volume: 0.54 ft3 Net Internal Volume: 0.50 ft3 F3, Fb: 32 Hz, 44 Hz RECOMMENDED SEALED BOX (MEDIUM VOLUME): External Dimensions: 18″ x 15″ x 7″ Gross Internal Volume: 0.79 ft3 Net Internal Volume: 0.75 ft3 F3, Fb: 28 Hz, 39 Hz RECOMMENDED SEALED BOX (LARGE VOLUME): External Dimensions: 20″ x 15″ x 8.75″ Gross Internal Volume: 1.04 ft3 Net Internal Volume: 1.00 ft3 F3, Fb: 28 Hz, 38 Hz Displacement Volume: 0.04 ft3 Hole Cutout Size: 9-5/8″ (243 mm) Features: Rockville RSTS10 Single 10″ .62 cu. ft. 5/8″ MDF Sealed Shallow/Truck Subwoofer Enclosure Box Designed For 10″ Shallow Mount Subwoofers Machine precision cut mounting holes 5/8″ USA Heavy Duty MDF Construction Top of the line Glue for extra durable adhesion High quality GOLD spring loaded terminals Designed, tested, and engineered to work perfectly with high powered subs Designed to give the best sound quality Some Compatible Subwoofers: CLARION: PFW1051, SFW1051, PIONEER: TS-SW1041D, TS-SW2541D, TS-SW251, Ts-SW1241D, TS-SW3041D, TS-SW301, JL AUDIO: 12TW53, 13TW53 Enclosure Measurements: Type of Enclosure: Sealed Shallow Enclosure Sub Size: Single 10″ Dimensions in Inches: 18.25″ x 5.5″ x 14.25″ Top and Bottom Depth: 5.5″ Mounting Depth: up to 4.5″ (enough depth for any shallow sub on the market) Gross Volume Per Sub (Measurement for the outer dimensions of the box): 0.83 Cubic Feet Net Volume Per Sub (Measurement for the outer dimensions of the box less the thickness of the wood): 0.62 Cubic Feet Includes: 10 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal) 12 Feet of 14 AWG Blue Speaker Wire 2 Spade Terminals This accessory package includes everything you need to install one subwoofer into an enclosure, and wire to connect the enclosure to your amplifier. This package is a top of the line accessory package which we put together and tested. The drywall wood screws were hand selected by our installation experts because they drill into the enclosure very cleanly, without chipping the enclosure. The speaker wire is 14 gauge. This is way better than using 16 gauge. You can be 100 % sure that your enclosure wil Alpine RS-W10D2 10” 600 Watt RMS Shallow Car Subwoofer Sealed Sub Box Enclosure
