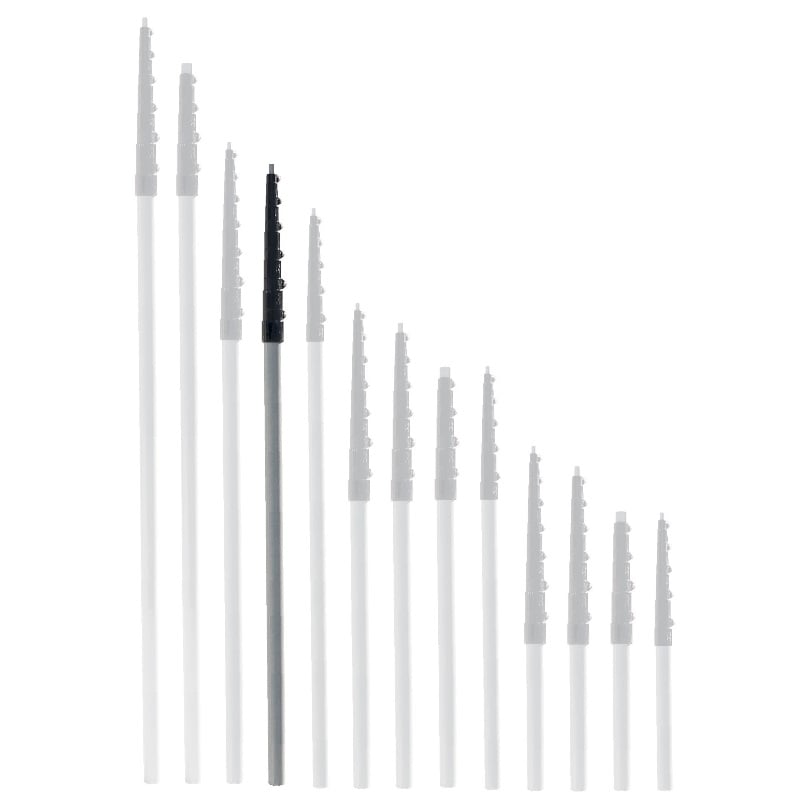

38 feet Heavy Duty Fiberglass Push-Up Mast MK-6-HD *All masts are kits and some assembly is required* View the Assembly and Use guide **All masts are kits and include fiberglass tubes and corresponding quik-clamps** The MK-6 Series of masts are, by far, our most popular masts for many reasons. The masts are light weight and short enough (tube lengths are all 6 feet long), when fully collapsed, to manipulate the quik-clamps from the ground or a short step ladder. This mast will get you above most obstacles to achieve maximum height, line-of-sight, maximum gain, and the best reception. Our masts are completely adjustable along the entire length of each tube. See the photo gallery to see dozens of pictures, all taken by customers, of our mast systems being used for a number of different applications. Specifications Maximum Usable Length (Height): 38 feet Length when sleeved: 7 feet and 7 inches Minimum overlap of tubes: 8 inches Length of Tubes: 6 feet Outer Diameter of Bottom Section: 2.5 inch Outer Diameter of Top Section: 1 inch Total Number of Sections: 7 Weight (when assembled): 17.8 pounds Assembly and Use Guide Assembly Blog Article GUY YOUR MAST A tall structure such as our full-length model MK-8 or MK-6 series masts (including the HD versions) MUST be guyed and kept under control with guys even while being erected. NOTE: Do NOT use metal guy cables with this mast system! Metal cables are conductive and HEAVY and add significantly to the vertical loading of the mast. Enlist three friends, family, or neighbors (or 4, if you choose 4 point guying) to stand in the approximate locations of the guy anchor points, and to hold the guy ropes and “feed them out” as you extend the mast, all the while being certain that the mast stays vertical. We recommend guying at least two levels with three direction guys. The kit below comes with everything we offer to guy your mast effectively. 38 FOOT MAST GUYING KIT Need more? We got you covered Guy Rings Guy Rope Guy Tensioners Mast Mounts Quick Links Guy Stakes Pulley Replacement Clamps About Max-Gain Systems, Inc. Max-Gain Systems, Inc. carries a full line of in-series, between series, right angle, T-shaped, quick connect, handie-talkie (BLACK), pigtails (coaxial jumpers), etc… RF adapters. Our RF adapter lines are constantly expanding. We keep our RF connector and adapter lines in stock. We ship both retail and wholesale quantities. To become a dealer / wholesale user, contact us with your potential usage. Max-Gain Systems, Inc. is the number one supplier of fiberglass round hollow tube, square tube and round solid rod to the antenna manufacturing industry. We produce millions of feet a year for hundreds of different industries including but not limited to: marine / boating, aeronautical, agriculture, construction, emergency services, etc…. We have the unique ability to sell one piece or even a semi-truck full. Feel free to prototype using our fiberglass tube and rod then contact us for a quote on a production run. At production run quantities we can cut to your desired lengths at no additional charge, and we can also perform several different fabrications (example: drilling holes in precise locations along a tube) to ensure your delivered material is ready for assembly. We have several accessory items designed for our fiberglass including but not limited to: couplers, telescoping clamps, ferrules, etc…
