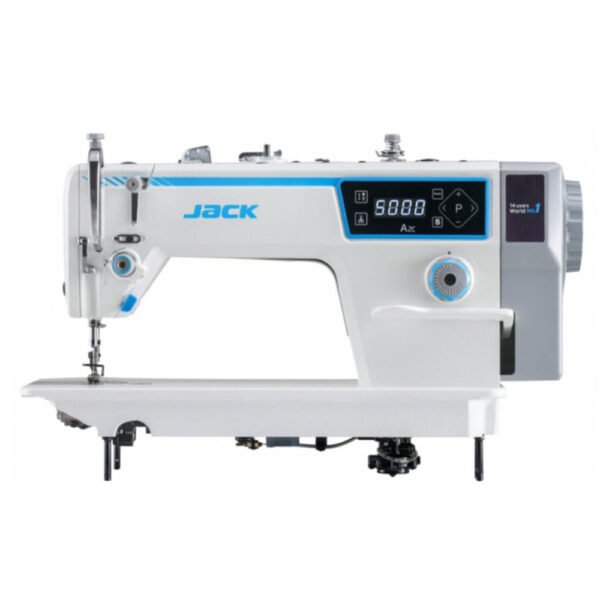

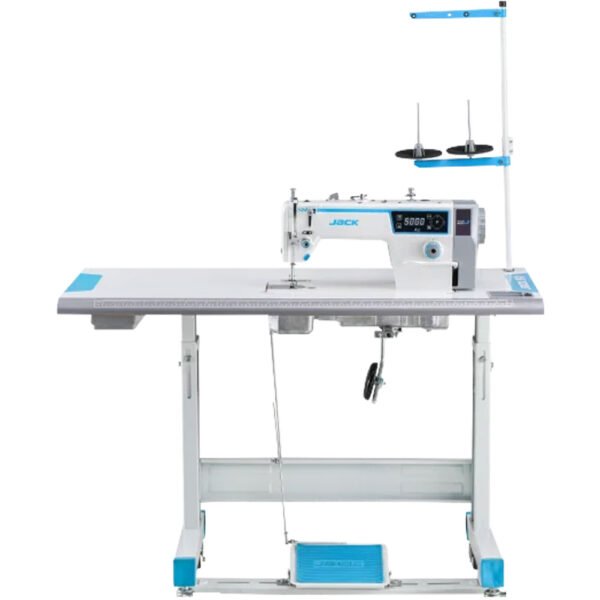

JACK A2C Lockstitch with Automatic Thread Trimmer

Description Specification Reviews JACK A2C Lockstitch A modern, single-needle lockstitch machine with automatic thread trimming and needle positioning. Equipped with the innovative FST cross-stitch system. A powerful motor provides powerful needle insertion and fabric feeding. Electric motor control ensures uninterrupted and stable operation, enabling smooth stitching of cross-stitches and any bulges without speed reduction. Integrated LED lighting on the needle bar. Automatic functions:  thread trimmer needle positioning The JACK A2C lockstitch machine is designed for sewing light to medium materials (JACK A2C-C) and heavier materials (JACK A2C-CH-7 with extended stitch length). The machine features bottom feed, central lubrication (traditional oil pan), and a stitch-addition button located near the needle bar. Technical parameters:  sewing speed: up to 5000 stitches/min (A2C-CH-7 up to 3500 stitches/min) stitch length: up to 5 mm (A2C-CH-7 up to 7 mm) presser foot lift height: up to 13 mm three function buttons located near the needle bar Model Application Needles Number of threads Stitch length (mm) Presser foot lift (mm) Sewing speed: stitches / min A2C-C Light/medium sewing DBx1 11-18# 4 5 up 13 5000 A2C-CH-7 Medium/heavy sewing DPx5 18-21# 4 7 up 13 3500 Engine with increased power, high torque and improved dynamics Equipped with the innovative FST system for overcoming cross-stitches. The increased power motor provides high needle insertion and material feeding force. Electronic engine control system The electric motor control ensures uninterrupted and stable operation of the machine, allowing smooth passage of cross seams and any thickening without reducing speed. SKU: A2BJACK001 Categories: Garment Sewing, Industrial
